Solar connectors play a vital role in linking panels, inverters, and junction boxes within a photovoltaic system. These precision-engineered connectors ensure high current flow, low resistance, and weatherproof performance — making them the backbone of reliable solar energy transmission.
Solar connectors are essential components in every photovoltaic (PV) system, designed to ensure safe, reliable, and efficient transmission of electrical power between solar panels, junction boxes, and inverters. These connectors create a secure, weatherproof link between solar cables, preventing power loss and maintaining consistent current flow even under harsh outdoor conditions.

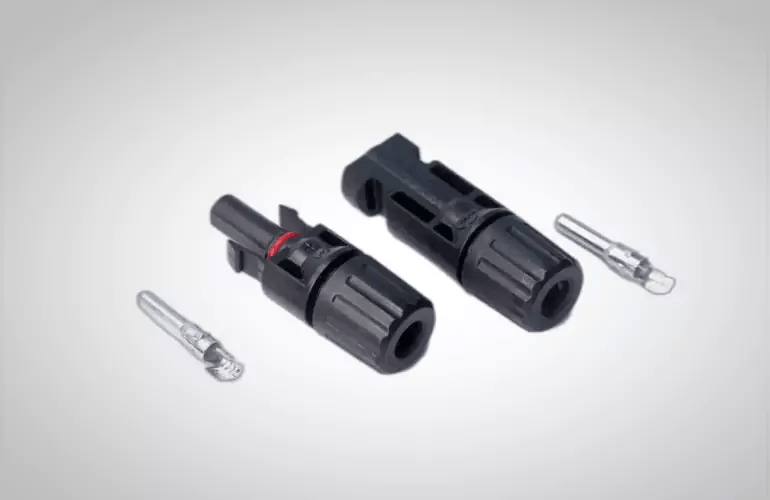

The LQ 1 Connector is designed for high-efficiency photovoltaic systems, offering superior contact reliability and minimal power loss. With its robust housing and waterproof sealing, it guarantees stable operation under extreme environmental conditions. Ideal for rooftop, ground-mounted, and commercial-scale installations.
| Rated Voltage | 1500V DC |
| Rated Current | 35A |
| Contact Material | Copper Alloy, Silver Plated |
| Insulation Material | PPO, UV Resistant |
| Protection Degree | IP68 |
| Temperature Range | -40°C to +90°C |

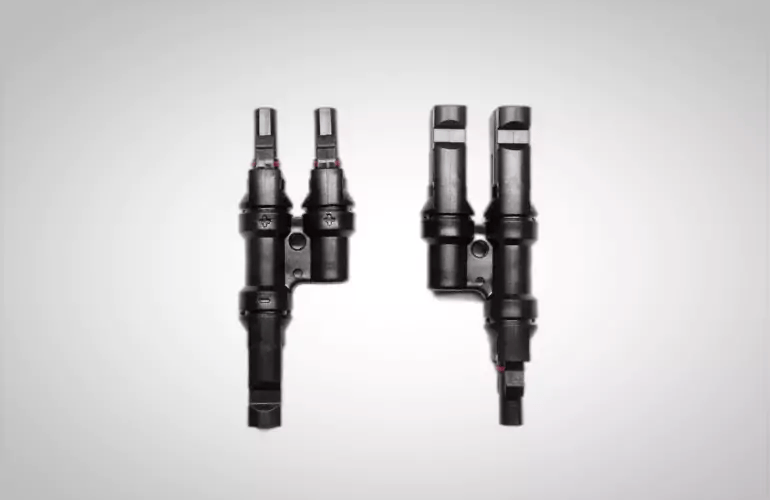

The 2 in 1 Branch Connector connects two solar panels in parallel, ensuring safe and efficient current distribution. Its robust design with anti-aging materials ensures long service life and superior conductivity.
| Rated Voltage | 1000V DC |
| Rated Current | 30A |
| Material | Copper with Silver Plating |
| Protection Level | IP67 |

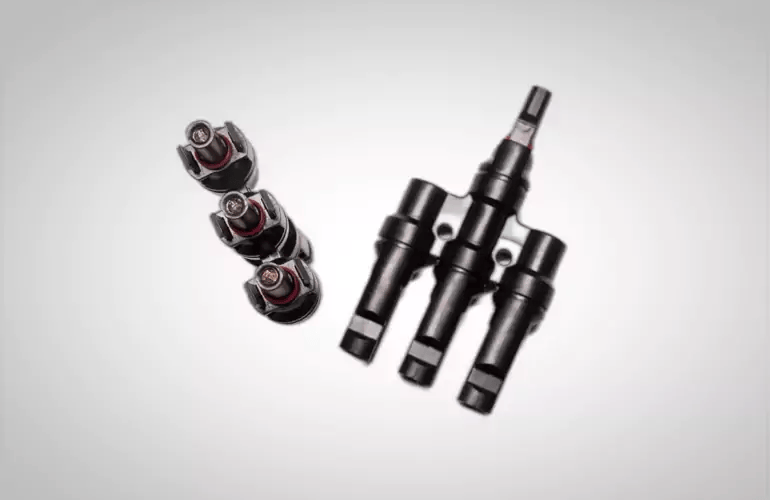

The 3 in 1 Branch Connector allows three solar modules to connect in parallel. It delivers enhanced current-carrying capability and consistent electrical contact with superior weather resistance.
| Rated Voltage | 1500V DC |
| Rated Current | 35A |
| Temperature Range | -40°C to +85°C |
| Cable Size | 2.5mm² – 6mm² |

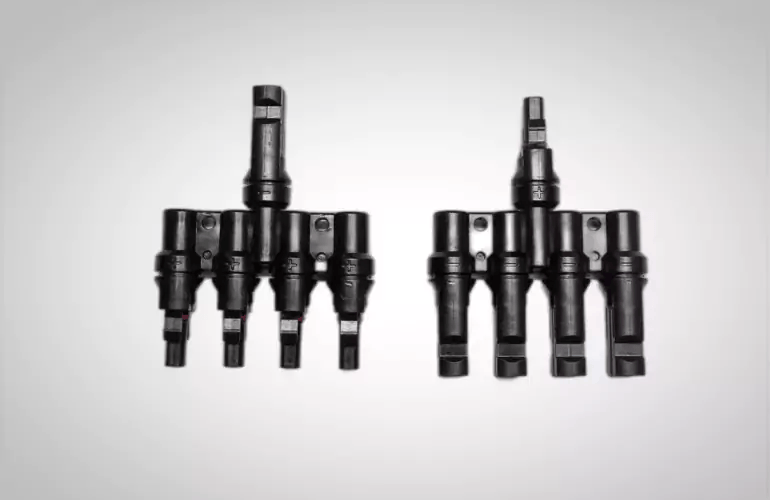

The 4 in 1 Branch Connector simplifies large-scale connections by merging four modules in parallel. Built for high current flow and long durability under sunlight exposure.
| Rated Voltage | 1500V DC |
| Rated Current | 45A |
| Insulation Resistance | ≥500MΩ |
| Protection Level | IP68 |

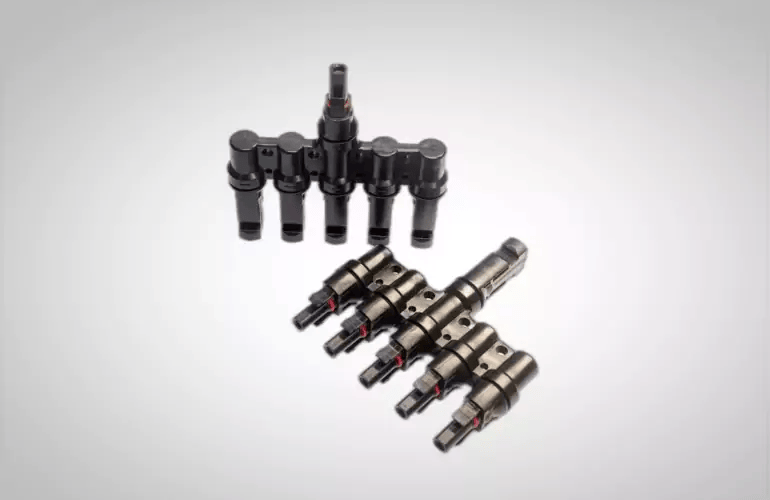

Designed for heavy-duty installations, the 5 in 1 Branch Connector provides seamless current merging for multiple solar modules, ensuring efficient energy flow with reduced wiring complexity.
| Rated Voltage | 1500V DC |
| Rated Current | 50A |
| Cable Size | 4mm² – 10mm² |
| Waterproof Rating | IP68 |

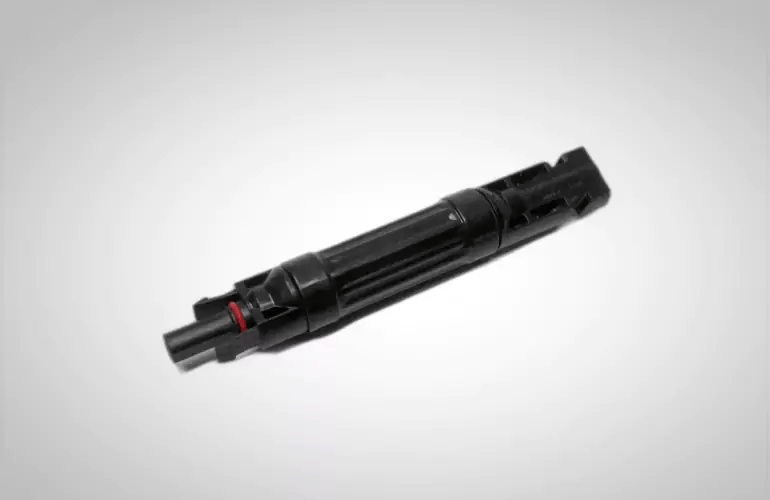

The Fuse Connector integrates an inline fuse to prevent reverse current damage. It’s an essential safety component for protecting PV modules from overcurrent and short-circuit conditions.
| Rated Voltage | 1000V / 1500V DC |
| Fuse Rating | 10A – 30A |
| Protection | IP67 Waterproof |

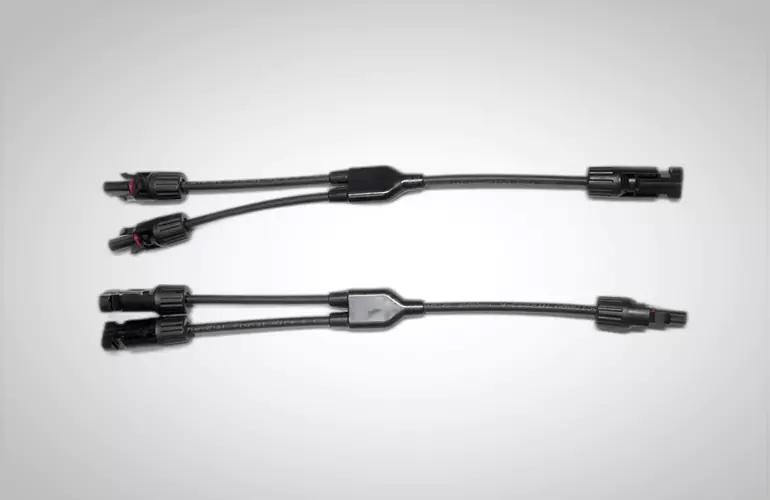

The Y Connector enables the parallel linking of two solar modules in a Y-shaped design, ensuring strong current flow with secure locking and weather-sealed durability.
| Rated Voltage | 1000V DC |
| Rated Current | 30A |
| Contact Material | Copper, Silver Plated |
| Waterproof Rating | IP67 |
